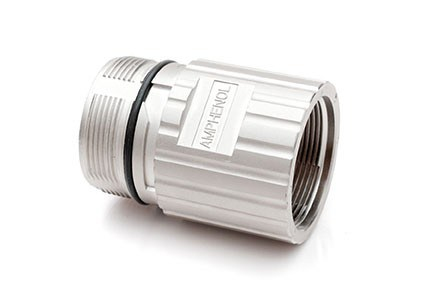

MC1JJN0800 8 position receptacle extension, threaded, male (MC1JJN0800)

SPECIFICATIONS:

• Approvals: ISO 9001/2000, UL Listed, E224856, CYJV/CYJV7
• Temperature Range: -20°C to 130°C
• Max. Current (AMP): 75A (Power), 30A (Signal)
• Voltage Rating (AC/DC): 630V (Power), 250V (Signal)
• Contact Resistance: < 1mΩ (Power), < 3mΩ (Signal)
• Min. Mating Cycles: > 50
• Test Voltage Rating: 6000V (Power), 4000V (Signal)
• Sealing Protection: IP67 (plugged condition)
• Degree of Protection: 3
• Overvoltage Category: III
• Number of Contact (mm): 6 Pos: 2 (2.0mm) + 4 (3.6mm); 8 Pos: 4 (2.0mm) + 4 (3.6mm)
• Wire Range (AWG): Pins: 14-18AWG (2.0mm), 8-12AWG (3.6mm) Sockets: 14-18AWG (2.0mm), 8-12AWG (3.6mm)
• Housing Body/Coupling Nut: Zinc Die Cast/Brass, Nickel Plated
• Insulation Inserts: PA66 / PBT, UL94/V0
• Contacts: Brass, Gold-plated
• Sealing Material: DuPont Viton®
• Contact Size: 2.0mm, 3.6mm
• Strain Relief Clamp Range: 9.0mm-26mm
